VV 113
![VV 113](uploads/images/vv113.jpg) | The VV 113 Vibratory Roller is a self propelled machine with joint frame consisting of a tractor unit formed by an axle equipped with two smooth steel wheels and a roller formed by a steel smooth vibratory drum. Both these parts are provided with hydrostatic drive. The hydrostaic drive of the vibrator can be stopped immediately. The driver´s seat fitted inside an independently heated and ventilated closed cabin is equipped with two steering mechanism of the machine. The machine is designed mainly for the compaction of bituminous mixturea and base layers combined with hydraulic filling materials. The roller can be supplied with tyres instead of 2 smooth steel wheels. |
STANDARD: | Cabin ventilated and heated Articulated frame Working halogens headlights Speedometer Painting STA: yellow, grey
| OPTIONS: | Tyres 23,1 x 26"- 8 PR Turning indicators Compaction indicator Compaction indicator printers Special painting |
CAPACIY: | Operating weight (CECE) | kg | 13.390 |
| WEIGHTS: | Operating weight maximum | kg | 14.000 | Drum load (CECE) | kg | 6.650 | Axle load (CECE) | kg | 6.750 | Statical load of the roadway by th drum/axle | kN | 64,6/66,7 | Static linear load | N/cm | 299 |
| STEERING: | Oscillation angle (+ -) | ° | 15 | Steering angle (+ -) | ° | 35 | Turning radius inner (edge) | mm | 4.000 | Turning radius outer (contour) | mm | 6.200 | Transversal stability - straight | ° | 35 |
| RIDING CHARACTERISTIC: | No. of travel speeds | 2 | Maximal speed | km/h | 12 | Gradeability without vibration | % | 40 | Gradeability wíth vibration | % | 30 |
| BRAKES: | Operation | hydrostatic | Parking | multi disc | Emergency | multi disc |
| VIBRATION: | Type of vibration | circle | AmplitudesI/II | mm | 0,4/1,6 | Fraquencies for amplitude I | Hz | 20/42 | Frequencies for amplitude II | Hz | 18/30 | Centrifugal forces for amplitude I | kN | 23/100 | Centrifugal forces for amplitude II | kN | 36/213 |
| TANKS: | | ELEKTROINSTALLATION: | Voltage | V | 24 | Capacity of batteries | Ah | 2x100 |
| ENGINE: | Make | Zetor | Type | 8701 | Rated power | kW | 88,3 |
|

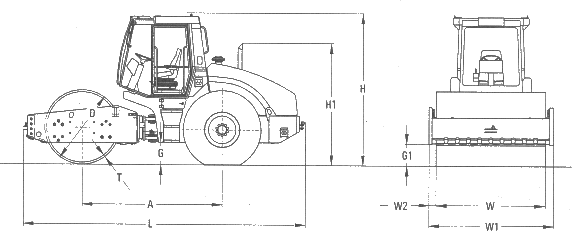

| PARAMETERS: size (mm) | A | D | G | G1 | H | H1 | L | T | W | W1 | W2 | 3.000 | 1.600 | 470 | 500 | 3.460 | 3.200 | 5.430 | 25 | 2.200 | 2.400 | 200 |
| | ![](uploads/images/vvxxd_h.gif)
| | Technical modifications and data reserved. Machines may be shown with options. | |
| Maximal compacted lift thickness at optimal working conditions (m) | Rockfill | Sand / Gravel | Mixed soils | Silt | Clay | 0,80 | 0,60 | 0,50 | 0,40 | 0,25 |
| |
|
|
