VSH 61 K
 | The VSH 61 K is a tandem combination articulated roller with vibrating drum in front and smmoth pneumatic tires at the back. Hydrostatic drive allows smooth speed control forward and reverse. Vibration exciter design permits selection of two working frequencies and associated amplitudes. The front vibrating drum and sound - proofed operator´s cabin is mounted on shock absorbers to prevent transfer of vibration. This machine is intended for medium size road building and municipal engineering work and is suitable for compaction of cohesive soils, and bituminous mixtures. |
STANDARD: | Cabin ventilated and heatedWorking halogen headlights SpeedometerTyres 11 X 20´´ Painting STA: yellow. grey | | OPTIONS: | Turning indicatorsCompaction indicator Compaction indicator printer Special painting |
| CAPACITY: | | Operating weight (CECE) | kg | 6.900 |
| | WEIGHTS: | | Operating weight maximum | kg | 7.250 | | Drum load (CECE) | kg | 3.300 | | Axle load (CECE) | kg | 3.600 |
| | STEERING: | | Oscillation angle (+ -) | ° | 15 | | Steering angle (+ -) | ° | 35 | | Turning radius inner | mm | 3.750 | | Turning radius outer | mm | 5.220 |
| RIDING CHARACTERISTIC: | | No. of travel speed | 1 | | Maximal speed | km/h | 11,5 | | Gradeability without vibration | % | 35 | | Gradeability with vibration | % | 30 |
| BRAKES: | | Operation | hydrostatic | | Parking | multi disc | | Emergency | multi disc |
| VIBRATION: | | Frequencies | Hz | 33/50 | | Centrifugal forces | kN | 50 |
| TANKS: | | ELEKTROINSTALLATION: | | Voltage | V | 24 | | Capacity of batteries | Ah | 2x100 |
| ENGINE: | Make | Zetor | Type | - | Rated power | kW | 60 |
|

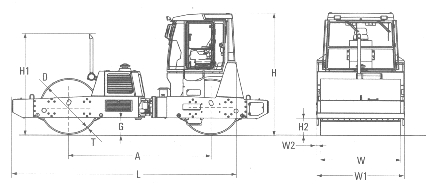

| PARAMETERS:
size (mm) | | A | D | G | H | H1 | H2 | L | T | W | W1 | W2 | | 2.780 | 1.050 | 310 | 2.860 | 2.180 | 310 | 4.140 | 15 | 1.400 | 1.620 | 220 |
| | |
| | | | Technical modifications and data reserved. Machines may be shown with options. | | |
| | Maximal compacted lift thickness at optimal working conditions (m) | | Rockfill | Sand / Gravel | Mixed soils | Silt | Clay | | 0,80 | 0,60 | 0,50 | 0,40 | 0,25 |
| | |
|
|
