VSH 102 K
 | VSH 102 K is a tandem vibratory roller with a rigid frame and two smooth machined drums. Both drums are driven, vibrating and steerable. VSH 102 K is a combined roller with a rigid frame. The front axle consists of a vibrating smooth drum with the machined surface, the rear axle is fitted with four rubber-tyred compaction wheels with smooth tread. Both axles are driven and steerable. The sources of vibration are double-stage undirected vibration exciters, placed in the axis of each drum. The drive of all machine function is hydrostatical. The machine is equipped with Martin Diesel engine, hydraulic Sauer-ZTS. |
| STANDARD: | Cabin ventilated (and heated for MD engine) Both drums / bdrumvibrating Two mode vibrators Backbone frame Crabbing up to 1600 mm both sides One lever control at both operator´s positions Pre selection of the travel and vibration Both drums are hydrostatically driven Working halogen headlights Four tyred wheels Painting STA: yellow, grey | | OPTIONS: | ROPS protection (obligatory for CE) Edge cutter Cabin glass tinted pholies Special painting |
| CAPACITY: | | Operating weight (CECE) | kg | 9.340 | | Compacting width maximum | mm | 3.370 | | Drum offset | mm | 1.570 |
| | WEIGHTS: | | Operating weight maximum (CECE) | kg | 9.690 | | Front drum load (CECE) | kg | 4.785 | | Rear axle load | kg | 4.555 | | Front drum linear load(CECE) | kg/cm | 26,6 |
| | STEERING: | | Steering angle at rear (+ -) | ° | 30 | | Steering anlge (+ -) | ° | 30 | | Oscillation angle (+ -) | ° | 5 | | Turning radius inner | mm | 2.700 | | Turning radius outer | mm | 4.900 | | Transversal stability - straigh | ° | 36 |
| RIDING CHARACTERISTIC: | | No. of travel speeds | 1 | | Maximal speed | km/h | 9 | | Gradeability without vibration | % | 40 | | Gradeability with vibration | % | 32 |
| BRAKES: | | Operation | hydrostatic | | Parking | multi disc | | Emergency | multi disc |
| VIBRATION: | | Amplitudes | mm | 0,8/0,4 | | Frequencies | Hz | 42 | | Centrifugal forces | kN | 98 / 49 |
| WATERING: | | Watering | pressure | | No. of pumps | 2 |
| TANKS: | | Fuel | lt | 155 | | Watering water | lt | 900 |
| ELEKTROINSTALLATION: | | Voltage | V | 24 | | Capacity of batteries | Ah | 2x135 |
| ENGINE: | Make | Martin Diesel | Type | Z8002.133 | Rated power | kW | 73,2 | Standard | SAE |
|
| PARAMETERS:

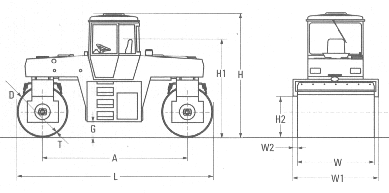

size (mm) | | A | D | G | H | H1 | H2 | L | T | W | W1 | W2 | | 3.400 | 1.200 | 430 | 3.100 | 2.460 | 975 | 4.600 | 19 | 1.800 | 1.960 | 80 |
| | |
| | | | Technical modifications and data reserved. Machines may be shown with options. | | |
| | Maximal compacted lift thickness at optimal working conditions (m) | | Asphalt | Sand / Gravel | Mixed soils | Silt | Stabilization | | 0,12 | 0,25 | 0,20 | - | 0,20 |
| | |
|
|
