VH 170

VH 170VH 170 is a small tandem vibratory roller with an articulated frame and two smooth drums with a finished surface. Both drums are driven and vibrating. Vibration sources are one stage non-rectified vibration exciters placed in the drum axis. The drive of all machine functions is hydrostatical. The machine is equipped with Kubota engine, hydraulic Hydromatic-Rexroth. It fulfils the requirements of pollutants emission directives EPA/CARB Tier 1. It meets the CE marking conditions.
STANDARD:
  • Operator platform without cabin with rails
  • Lockable bonet
  • Lockable vandal guard
  • Suspended operator´s platform
  • Forwards/backwards adjustable seat
  • Seat with contact switch
  • Both drums vibrating
  • Transport lashing and lifting eyes front, rear
  • Two scrapers per drum
  • Plastic water tank
  • One mode vibrators
  • Operator can switch off/on a front/rear vibration
  • Vibration control in travel and vibration
  • vibration control in travel lever
  • Both drums are hydrostatically driven
  • Painting STA : yellow, grey
    • OPTIONS:
    • ROPS protection (obligatory for CE)
    • ROPS canopy (mounted to ROPS)
    • Beacon
    • Back up alarm
    • Special painting
    CAPACITY:
     Operating weight (CECE)kg 1.728
     Compacting width maximummm 900
     Drum offsetmm 0
    WEIGHTS:
     Operating weight maximum kg 1.800
     Frint drum load (CECE)kg 864
     Rear drum load (CECE)kg 864
     Front drum linear loadkg/cm 9,6
     Rear drum linear loadkg/cm 9,6
    STEERING:
     Steering angle (+ -)° 35
     Oscillation angle (+ -)° 10
     Turning radius inner (edge)mm 1.770
     Turning radius outer (contour)mm 2.710

    RIDING CHARACTERISTIC:

     No. of travel speeds1
     Maximal speedkm/h 10
     Gradeability without vibration% 40
     Gradeability with vibration% 32

    VIBRATION:

     Amplitudesmm

    0,45

     FrequenciesHz 60
     Centrifugal forceskN 15

    TANKS:

     Fuel lt 30
     Watering waterlt 100

    ELEKTROINSTALLATION:

     Voltage V 12

    ENGINE:

     Make

    Kubota

     Type

    D722-EBB-EC

    Rated power

    kW

    14

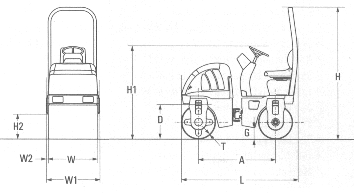

    PARAMETERS:
    size (mm)
    ADGHH1H2LTWW1W2
    1.4006202502.5601.6405002.05011,590098643



    Technical modifications and data reserved. Machines may be shown with options.

     Maximal compacted lift thickness at optimal working conditions (m)
    AsphaltSand / GravelMixed soilsSiltStabilization
    0,100,150,10-0,10
