SFS 100

SFS 100

SFS 100 are cold road milling machines with a hydrostatic drive system and the front loading conveyer of the cut-off material. It is designed for mid and large scale jobs of repairs and rehabilitation of asphalt or concrete road layers. The machine is equipped with Martin Diesel engine, hydrostatic transmission Sauer-ZTS and Mannesmann Rexroth.

ŠTANDARDNÁ VÝBAVA:
  • Operator platform without cabin with rails
  • Pressure sprinkling system
  • Standard levelling device
  • Electrohydraulic control
  • Wheels are hydrostatically driven
  • Working halogen headlights
  • Teeth knockout tool
  • Levelling adjustment device
  • Painting STA: yellow, grey
    • NA PRIANIE:
  • Telescopic front wheel
  • SFS 100 to SFS 50 rebuilding kit
  • Special painting
    • CAPACITY:
     Operating weight  (CECE)kg 12.750
    WEIGHTS:
     Operating weight maximum (CECE)kg 12.750
    STEERING:
     Turning radius inner (edge)mm 2.785

    RIDING CHARACTERISTIC:

     No. of travel speeds2
    Maximal speedkm/h 8

    BRAKES:

     Operationhydrostatic
      Parkingmulti disc
     Emergencymulti disc

    WATERING:

      Wateringpressure
     No. of pumps1
     Water filtration stages1

    TANKS:

     Fuellt 240

    ELEKTROINSTALLATION:

      VoltageV 24
      Capacity of batteriesAh 2x150

    ENGINE:







     Make



    Martin Diesel

     Type

    Z 8602.12

     Rated power

    kW

    116

     Standard

    ISO 3046/1

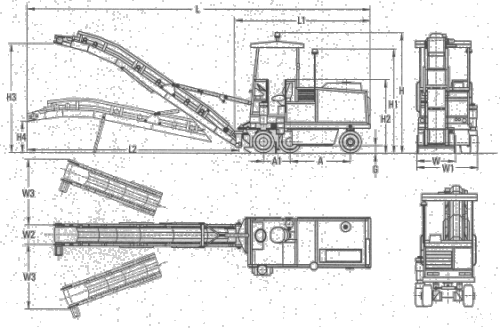

    PARAMETERS::
    size (mm)
    AA1HH1H2H3H4LL1L2WW1W2W3
    1.8008003.6003.1902.2003.33591010.3504.0706.4801.0001.9304501.906



     Technical modifications and data reserved. Machines may be shown with options.
