GRW 101

GRW 101



The GRW 101 static rubber tyred roller is equipped with a hydrodynamic  convertor and a two - speed reverse gear. The undercarriage has eight wheels equipped with tyres especially designed for compaction tasks. The four front wheels are steerable, the four rear ones are  driving wheels. The tyre inflation pressure is adjustable even during travel. Ballast plates can be used for compaction in earthmoving and in building macadam roads, and that for compacting wear layers, soil and bituminous carpets.

STANDARD:
  • Tyre inflation system (during operation)
  • Cabin ventilated and heated
  • Doubled steering, two working sites
  • 4+4 pneumatic tyred 11x20"
  • Rear ayle is hydrodynamically driven
  • Modulated powershift gear box
  • Working halogens headlights
  • Turn indicators
  • Back up alarm
  • Beacon
  • Painting STA: yellow, grey
  • OPTIONS:
  • Special painting
  • Ballast
  • CAPACITY:
     Operating weight(CECE)kg 7.800
     Compacting width maximummm 1.986
    WEIGHTS AND PRESSURE:
     Operating weight maximumkg 18.700
     Tyre inflation (adjustable)MPa 0,2 - 0,6
    STEERING::
     Levelling of vertical alignment - in frontmm 200
     Side overlapmm 30
     Swinging of the front pair of tyres (+ -)° 3 - 5
     Turning radius innermm 5.900
     Turning radius outermm 7.800

    RIDING CHARACTERISTIC:

     No. of travel speeds
     Maximal speedkm/h 20
     Gradeability25

    BRAKES:

      Operationhydrostatic
     Parkingdisc
     Emergencydisc

    WATERING:

     Wateringpressure
      No. of pumps
     Water filtration stages

    TANKS:

     Fuellt 180

    ELEKTROINSTALLATION:

     Voltage12
     Capacity of batteriesAh 135

    ENGINE:

     Make

    Zetor

     Type

    8401.133

      Rated power

    kW

    59

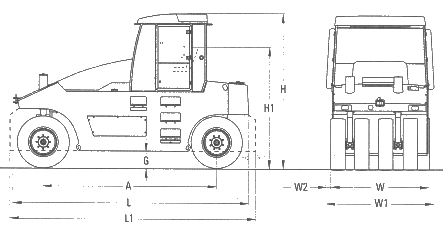

    PARAMETERS:
    size (mm)
    AGHH1LL1WW1W2
    3.5003003.4502.9404.5454.5851.9862.12030



      Technical modifications and data reserved. Machines may be shown with options.

    Maximal compacted lift thickness at optimal working conditions (m)
    AsphaltSand / GravelMixed soilsSiltClayStabilization
    0,120,250,200,150,150,15
