COM 3010

COM 3010

COM 3010 is designed for shoving, crushing and compacting of municipal waste on middle and large landfills. Four driven crushing and compacting steel wheels of the compactor are overhung at the axles. The front part of the articulated frame of the machine bears the blade (COM 3000) or loading attachment with a shovel (COM 3010). The drive of the travel is hydrodynamic, the drive of the working tools and steering are hydrostatic. The machine is equipped with Cummins engine, powershift gearbox ZF, hydraulic Casappa.

STANDARD:
  • Air conditional cabin
  • ROPS protection
  • Adjustable steering wheel
  • Padded wheels with scrapers
  • One lever control
  • Both axles are hydrodynamicaly driven
  • Differential lock in both axles
  • Beacon
  • Tinted windscreens
  • Working halogen headlights
  • Loading bucket
  • Painting STA: yellow, grey
    • OPTIONS:
  • Choping plates rear wheels
  • Tired wheels for transport (4 pieces)
  • Automatic central lubrication system
  • Back up alarm
  • Special painting
    • CAPACITY:
     Operating weight (CECE)kg 28.848
     Compacting width maximummm 3.810
      Dozing blade widthmm 4.000
    WEIGHTS:
     Operating weight maximum (CECE)kg 31.810
      Front axle load  (CECE)kg 17.080
     Rear axle load (CECE)kg 14.720
    WHEEL:
     No. of pad feet60
     Height of padmm 200
     Contact area of one pad footcm2 50,4
    BUCKET:
     Bucket heightmm 2.063
     Bucket Tipping liftmm 3.470
    STEERING:
    Front axle steering angle (+ -)° 39
    Oscillation angle(+ -)° 14
    Turning radius innermm 4.345
    Turning radius outermm 8.250
    Transversal stability - straight° 32

    RIDING CHARACTERISTIC:

    No. of travel speeds3
     Maximal speedkm/h 16
    Gradeability% 70

    BRAKES:

     Operationmulti disc
     Parkingdisc
     Emergencydisc

    TANKS:

    Fuellt 430

    ELEKTROINSTALLATION:

     VoltageV 24
     Capacity of batteriesAh 165

    ENGINE:

     Make

    Cummins

     Type

    M 11-C290

     Rated power

    kW

    216

    Standard

    ISO 1585

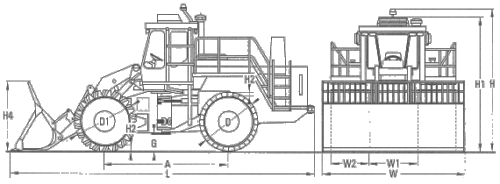

    PARAMETERS:
    size (mm)
    ADD1GHH1H2H3H4LWW1W2
    3.5301.8001.8005104.1404.0002002002.0638.7304.0001.6502.160



    Technical modifications and data reserved. Machines may be shown with options.
